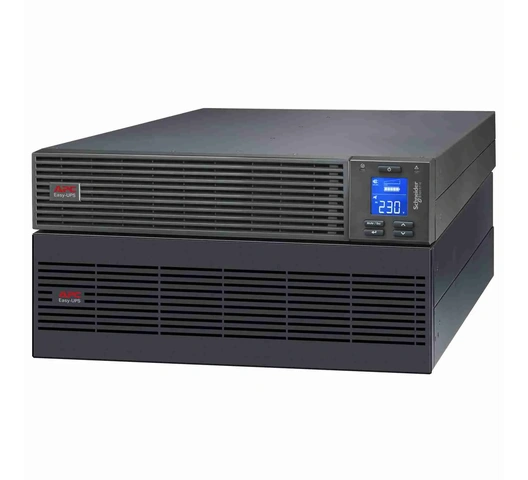

APC Easy UPS OnLine SRV 10KVA RM 10000VA 230V SRV10KRILRK
by APC
The APC SRV10KRILRK Easy UPS 10KVA Rackmount is a double-conversion, online UPS built to deliver reliable power backup and protection for data centers, servers, telecom, and industrial systems. This 5U UPS includes an external battery pack, rail kit, and all mounting accessories ready for mission-critical applications
- Provides consistent output voltage and frequency, regardless of input anomalies. Ideal for sensitive equipment.
- Extends runtime and supports battery scalability for longer backup durations.
- Supplied with mounting rail kit and accessories for fast, tool-less rack integration.
- Displays vital parameters: load level, battery health, input/output voltage, fault status, runtime estimation, and more.
- Tolerates significant fluctuations in utility power—reduces battery usage and prolongs battery life.
- Ensures continuity of power to critical loads during UPS maintenance or fault conditions.
- Hot-Swappable Batteries
- Smart Connectivity
- Efficient & Eco-Friendly
| SKU | 00009 |
|---|
Reviews
This product does not have any reviews yet.
Add your reviewDescription
APC Easy UPS OnLine SRV 10KVA RM 10000VA 230V SRV10KRILRK
The APC SRV10KRILRK Easy UPS On-Line SRV 10000VA 230V Rackmount is a robust, double-conversion online UPS system engineered for critical IT infrastructure, including data centers, server rooms, telecom installations, and industrial systems. Designed to ensure consistent, clean, and reliable power, the UPS delivers 10,000VA (10kVA) / 9,000W of output capacity with a highly efficient, scalable architecture.
Packaged in a 5U rackmount form factor, this Easy UPS includes an external battery pack, rail kit, and all necessary mounting hardware for immediate deployment in rack environments. It offers excellent power protection against surges, spikes, brownouts, and blackouts while maintaining continuous operation during power interruptions.
Ideal for environments with poor power quality, the SRV10KRILRK ensures uptime and business continuity through its true double-conversion topology, wide input voltage range, and automatic bypass functionality.
Detailed Specifications
| Category | Specification |
|---|---|
| Model Number | SRV10KRILRK |
| Brand | APC by Schneider Electric |
| Topology | Double-Conversion Online |
| Output Power Capacity | 10,000 VA / 9,000 Watts |
| Input Voltage Range | 110 – 300V (full load from 160V) |
| Input Frequency | 40 - 70 Hz auto-sensing |
| Output Voltage | 230V (adjustable to 220V, 240V) |
| Output Frequency | 50/60 Hz ± 0.1 Hz (autosensing or manual) |
| Waveform Type | Pure Sine Wave |
| Efficiency | Up to 94% in online mode |
| Battery Type | Sealed Lead-Acid, maintenance-free |
| Battery Pack | Included (External battery module with connectors) |
| Runtime (Typical) | Approx. 5–10 minutes at full load (extendable) |
| Hot-Swappable Batteries | Yes |
| Rack Height | 5U |
| Mounting Type | Rackmount (includes rail kit) |
| LCD Display | Multifunction LCD with real-time status and alarms |
| Communication Ports | USB, Serial, SmartSlot, RJ-45 for network management |
| Management Software | PowerChute Business Edition (optional) |
| Audible Alarms | Yes (overload, battery, fault, etc.) |
| Bypass | Internal automatic and manual bypass |
| Operating Temp. | 0°C to 40°C |
| Dimensions (HxWxD) | Approx. 219mm x 438mm x 715mm |
| Weight | Approx. 85–100 kg (with battery module) |
| Certifications | CE, RoHS, IEC/EN 62040 |
| Warranty | 2 years (repair or replace) |
Key Features
✅ Double-Conversion Online Topology
-
Provides consistent output voltage and frequency, regardless of input anomalies. Ideal for sensitive equipment.
✅ 10kVA / 9kW Power Capacity
-
Supports high-density server racks, networking gear, and enterprise storage systems.
✅ External Battery Pack Included
-
Extends runtime and supports battery scalability for longer backup durations.
✅ Rackmount Ready (5U)
-
Supplied with mounting rail kit and accessories for fast, tool-less rack integration.
✅ Intelligent LCD Display
-
Displays vital parameters: load level, battery health, input/output voltage, fault status, runtime estimation, and more.
✅ Wide Input Voltage Range
-
Tolerates significant fluctuations in utility power—reduces battery usage and prolongs battery life.
✅ Built-in Automatic and Manual Bypass
-
Ensures continuity of power to critical loads during UPS maintenance or fault conditions.
✅ Hot-Swappable Batteries
-
Enables battery replacement without powering down connected loads.
✅ Smart Connectivity
-
Features USB and serial communication, optional SNMP card, and PowerChute software support for advanced monitoring and graceful shutdown.
✅ Efficient & Eco-Friendly
-
High efficiency reduces operational costs and thermal output; compliant with international safety and energy standards.
Applications
-
Enterprise Server Rooms & Data Centers
-
Network Closets & Telecom Hubs
-
Industrial Control Systems
-
Medical & Laboratory Equipment
-
Banking and Finance Infrastructure
-
Point-of-Sale and Retail IT Systems
