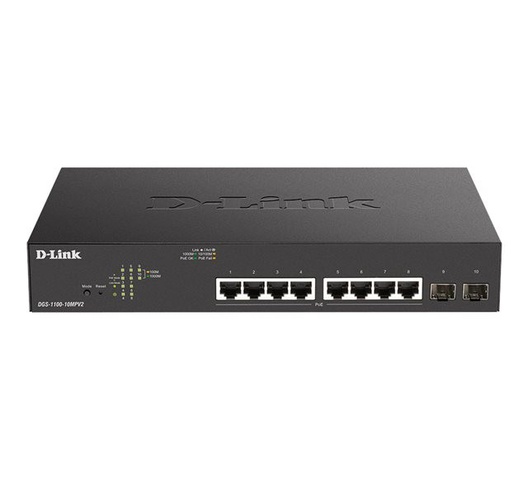

DGS-1100-10MPV2 8-Port PoE Smart Switch

The DGS-1100-10MPV2 8-Port PoE Smart Switch combines powered Gigabit connections, fibre uplinks, and practical Layer 2 management. It suits offices, schools, hotels, shops, and professional network camera installations. Eight Power over Ethernet ports can power compatible devices through network cables. Meanwhile, two dedicated Small Form-factor Pluggable ports provide Gigabit fibre uplinks to supported network equipment.

Product Overview

The switch provides eight 10/100/1000 Mbps ports with IEEE 802.3af and IEEE 802.3at support. Therefore, compatible access points, Internet Protocol cameras, and phones can receive data and power through one cable. Its shared 130W PoE budget supports several powered devices.

Two dedicated Gigabit SFP ports allow fibre connections through suitable transceivers. In addition, the web interface gives administrators access to Virtual Local Area Networks, Quality of Service, port settings, and traffic controls. This approach adds useful management without requiring a complex enterprise platform.

Key Features

• Provides eight Gigabit PoE ports, allowing compatible equipment to receive electrical power and network data through Ethernet cabling.

• Offers a shared 130W PoE budget, supporting multiple powered devices within the total available capacity.

• Supports IEEE 802.3af and IEEE 802.3at, providing standards-based power for compatible network devices.

• Includes two dedicated Gigabit SFP ports, supporting fibre uplinks through suitable transceivers.

• Uses a web-based interface, making supported Layer 2 settings accessible through a standard browser.

• Supports Virtual Local Area Networks, allowing administrators to divide traffic into separate logical network groups.

• Provides Quality of Service controls, helping prioritise important voice, video, or business traffic.

• Supports Link Aggregation, allowing compatible ports to combine bandwidth or provide connection resilience.

• Includes loop prevention features, helping protect the network from accidental cabling loops.

• Provides cable diagnostics, which help administrators identify faults within connected Ethernet cables.

• Supports IEEE 802.3az Energy-Efficient Ethernet to reduce power use during periods of low activity.

Technical Specifications

• Brand: D-Link

• Model: DGS-1100-10MPV2

• Product type: Layer 2 smart managed PoE switch

• PoE ports: 8 × 10/100/1000 Mbps

• Uplink ports: 2 × Gigabit SFP

• Total port count: 10

• PoE standards: IEEE 802.3af and IEEE 802.3at

• Maximum PoE output per port: 30W

• Total PoE budget: 130W

• Switching capacity: 20 Gbps

• Management: Web-based interface

• Supported features: VLAN, QoS, Link Aggregation and loop prevention

• Energy efficiency: IEEE 802.3az

• Cooling: Smart fan

Common Applications

The DGS-1100-10MPV2 8-Port PoE Smart Switch suits small offices, schools, hotels, retail premises, and surveillance installations. It can connect and power compatible network cameras, access points, and VoIP phones. Furthermore, the dedicated SFP ports support fibre uplinks between network cabinets, floors, or supported switches.

Why Choose This Product?

This switch provides more control than an unmanaged model while keeping configuration accessible. Consequently, administrators can separate traffic, prioritise services, combine links, and diagnose cable faults. The DGS-1100-10MPV2 8-Port PoE Smart Switch also combines a 130W budget with two dedicated fibre uplinks. These features support organised deployment and future network growth.

Frequently Asked Questions

Do the two SFP ports share connections with the PoE ports?

The two Gigabit SFP interfaces are dedicated uplink ports. Therefore, using them does not replace any of the eight copper PoE connections.

How much power can one PoE port deliver?

Each compatible port can provide up to 30W under IEEE 802.3at. However, the combined demand must remain within the 130W budget.

Can the switch identify a damaged Ethernet cable?

The built-in cable diagnostics can help locate common cable faults and estimate their distance from the switch.

Does the switch support separate networks for different devices?

The DGS-1100-10MPV2 8-Port PoE Smart Switch supports VLAN configuration, allowing administrators to separate selected traffic into logical groups.
