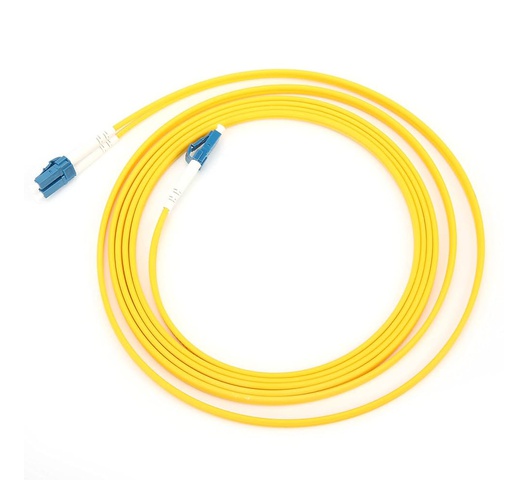

Fiber Patch Cord LSZH, LC UPC to LC UPC, SM, DX, 3M - LW-PC-LCU-LCU-DX-SM-3M
3M LC/UPC to LC/UPC Single Mode Duplex Fiber Patch Cord with LSZH jacket. Designed for high-speed, low-loss transmission in enterprise and telecom environments
- Fiber Type: Single Mode.
- Connector Type: LC/UPC to LC/UPC (both ends).
- Jacket Material: LSZH (Low Smoke Zero Halogen) or PVC.
- Connector Polishing: UPC (Ultra Physical Contact) for low insertion loss and high return loss.
- Length: Available in common lengths (1m, 3m, 5m, 10m), with custom lengths available.
- Operating Temperature: Typically -20°C to 70°C (depending on jacket material).
- Insertion Loss: Low, typical for UPC connectors
| SKU | 00022 |
|---|
Reviews
This product does not have any reviews yet.
Add your reviewDescription
Fiber Patch Cord LSZH, LC UPC to LC UPC, SM, DX, 3M - LW-PC-LCU-LCU-DX-SM-3M
Looking for a reliable, high-performance fiber optic solution for your data center or enterprise network? The 3-meter Fiber Patch Cord LC/UPC to LC/UPC Single Mode Duplex (SM DX) from Almiria Techstore is designed for exceptional signal clarity and minimal loss in high-density cabling environments. Ideal for telecom, internet backbones, cloud networking, and enterprise-grade optical infrastructure.
🔧 Key Features of LW-PC-LCU-LCU-DX-SM-3M Fiber Patch Cord
-
Connector Type: LC/UPC to LC/UPC on both ends – compact and widely compatible.
-
Polish Type: UPC (Ultra Physical Contact) – ensures low insertion loss and high return loss.
-
Fiber Type: 9/125μm OS2 single-mode – optimized for long-distance, high-bandwidth transmission.
-
Jacket Material: LSZH (Low Smoke Zero Halogen) – flame-retardant, halogen-free, safe for enclosed spaces.
-
Cable Diameter: 3.0mm duplex – durable yet flexible, perfect for dense cable routing.
-
Bend-Insensitive Design: Maintains performance even under tight bend radius, minimizing signal attenuation.
-
Precision Ceramic Ferrules: Deliver consistent performance and superior durability over time.
-
High-Speed Transmission: Supports 1G/10G/40G/100G+ Ethernet systems across up to 10km at 1310nm or 40km at 1550nm.
📐 Technical Specifications
| Specification | Details |
|---|---|
| Product Code | LW-PC-LCU-LCU-DX-SM-3M |
| Fiber Type | OS2 9/125μm Single Mode |
| Connector | LC/UPC to LC/UPC |
| Polishing Type | UPC |
| Cable Type | Duplex, 3.0mm Outer Diameter |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Length | 3 Meters |
| Insertion Loss | ≤ 0.3dB (Typical) |
| Return Loss | ≥ 50dB (UPC Standard) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Compatibility | All LC/UPC-based transceivers and devices |
🔄 Applications
-
Data Centers & Server Rooms
-
Enterprise Structured Cabling Systems
-
High-Speed Internet Backbone Links
-
FTTH (Fiber to the Home) & FTTx
-
Telecom Carrier Networks
-
Cloud Storage Connectivity
🧩 Why Choose This Patch Cord?
This fiber patch cable is not only bend-insensitive but also halogen-free and flame retardant, making it safe for confined installations. The UPC polish ensures ultra-low back reflection, perfect for high-precision fiber optic communication environments.
