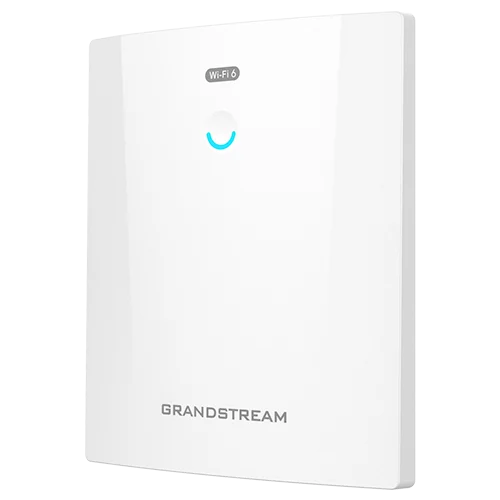

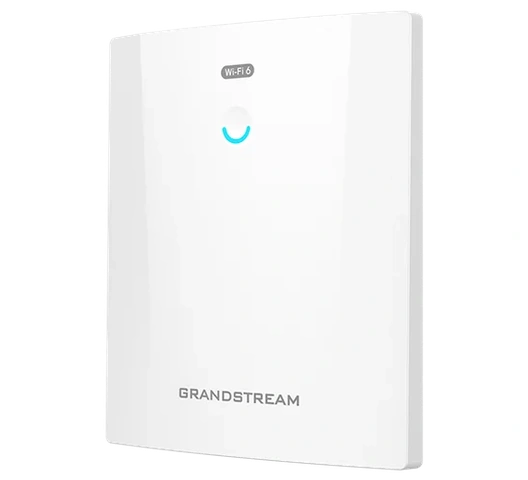

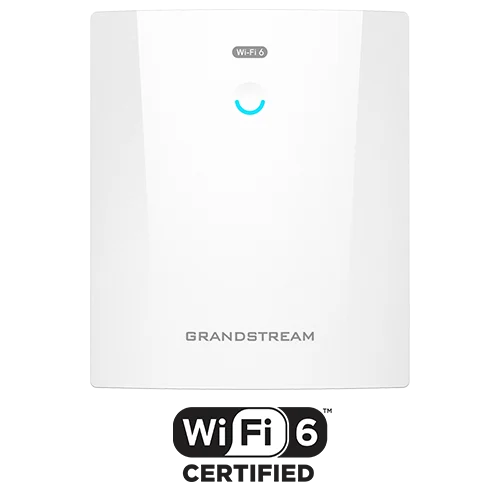

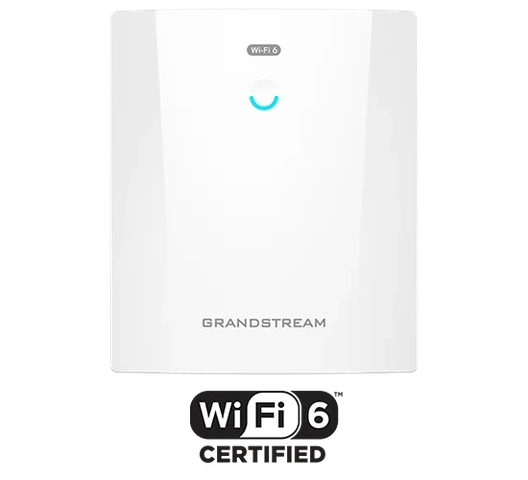

Grandstream GWN7660ELR Access Point

The Grandstream GWN7660ELR Access Point is an enterprise-grade, long-range Wi-Fi 6 device for high-density indoor and outdoor networks. It suits schools, hotels, warehouses, office campuses, retail centres, hospitals, and public venues. With 3Gbps aggregate wireless throughput, 300-metre coverage, and support for 256 clients, it helps organisations deliver managed Wi-Fi across large business environments.

Product Overview

The Grandstream GWN7660ELR Access Point uses dual-band 2×2:2 Multiple-Input Multiple-Output technology. It also supports Orthogonal Frequency-Division Multiple Access. Therefore, the access point can divide wireless channels efficiently when communicating with multiple compatible Wi-Fi 6 clients.

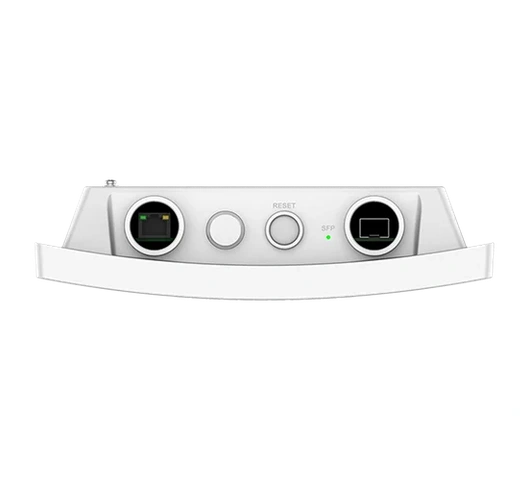

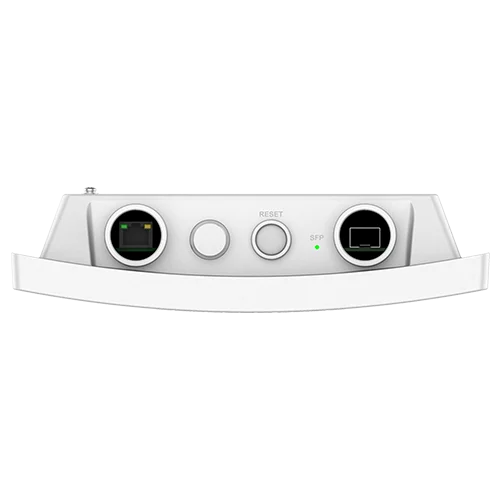

Its wired interfaces include one Gigabit RJ45 port and one 2.5Gbps Small Form-factor Pluggable port. Moreover, automatic power adaptation detects Power over Ethernet or Power over Ethernet Plus input. Five internal antennas support wireless coverage without exposed external antennas.

Key Features

• Delivers 3Gbps aggregate wireless throughput, supporting data-intensive applications across both frequency bands.

• Supports up to 256 concurrent clients, making it suitable for high-density business and institutional networks.

• Provides coverage of up to 300 metres, helping extend Wi-Fi across large indoor and outdoor areas.

• Uses dual-band 2×2:2 MIMO with OFDMA, improving wireless resource allocation for compatible devices.

• Includes one 1Gbps RJ45 port and one 2.5Gbps SFP port, offering flexible wired network connections.

• Supports Power over Ethernet and Power over Ethernet Plus, reducing separate power cabling at the installation point.

• Provides advanced Quality of Service, helping prioritise voice, video, and other delay-sensitive traffic.

• Includes secure boot, digital signatures, a unique security certificate, and a random default password for each device.

• Uses five individual internal antennas, providing a clean design without detachable external antennas.

• Includes an embedded controller that can manage up to 50 local GWN access points.

Technical Specifications

• Brand: Grandstream

• Model: GWN7660ELR

• Product type: Enterprise-grade long-range Wi-Fi 6 access point

• Wireless standards: IEEE 802.11b/g/n/ac/ax

• Radio technology: Dual-band 2×2:2 MIMO with OFDMA

• Aggregate wireless throughput: 3Gbps

• 2.4GHz throughput: 573.5Mbps

• 5GHz throughput: 2.4Gbps

• Client capacity: Up to 256 concurrent devices

• Coverage range: Up to 300 metres

• Network interfaces: 1 × 1Gbps RJ45 and 1 × 2.5Gbps SFP

• Service Set Identifiers: 32 total, with 16 per radio

• Antennas: 5 individual internal antennas

• Power standards: IEEE 802.3af PoE and IEEE 802.3at PoE+

• Maximum power consumption: 13W

• Dimensions: 270 × 230 × 57mm

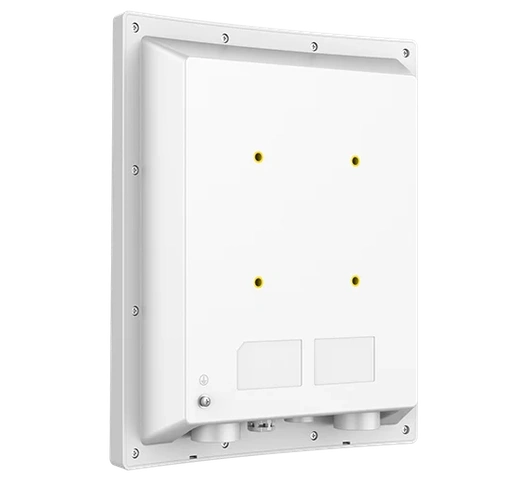

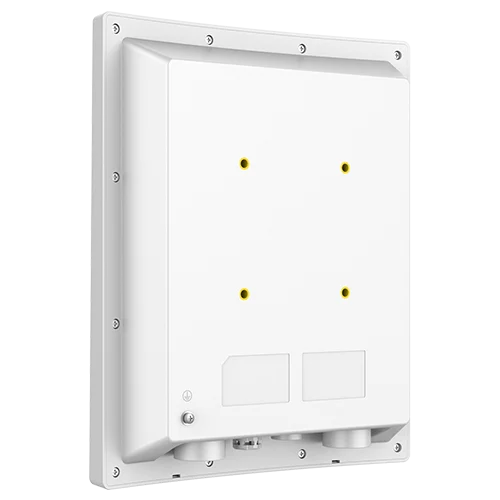

• Mounting: Wall or pole mounting with included adjustable kits

Common Applications

This Wi-Fi 6 outdoor access point suits campuses, warehouses, hotel grounds, hospitals, recreational sites, and large commercial properties. However, physical barriers, interference, mounting height, and client capability affect real coverage. Consequently, installers should complete a site survey before deciding the access point quantity and placement.

Why Choose This Product?

The Grandstream GWN7660ELR Access Point combines long-range Wi-Fi 6, high client capacity, multi-gigabit fibre connectivity, and flexible management. Its embedded controller supports smaller local deployments, while cloud and on-premise platforms support larger networks. Furthermore, the included adjustable mounting kits simplify wall or pole positioning.

Frequently Asked Questions

What is the purpose of the 2.5Gbps SFP port?

The SFP interface provides a 2.5Gbps wired connection, which can support fibre-based uplinks when used with a suitable module and network infrastructure.

How does OFDMA improve a busy wireless network?

OFDMA divides a wireless channel into smaller resource units. As a result, the access point can communicate efficiently with several compatible clients.

Does this access point use external antennas?

Five individual antennas sit inside the enclosure. Therefore, the unit does not depend on exposed detachable antennas for its stated configuration.

Can the mounting angle be adjusted?

The included wall and pole mounting kits can rotate by up to 60 degrees, allowing installers to refine the device position.
