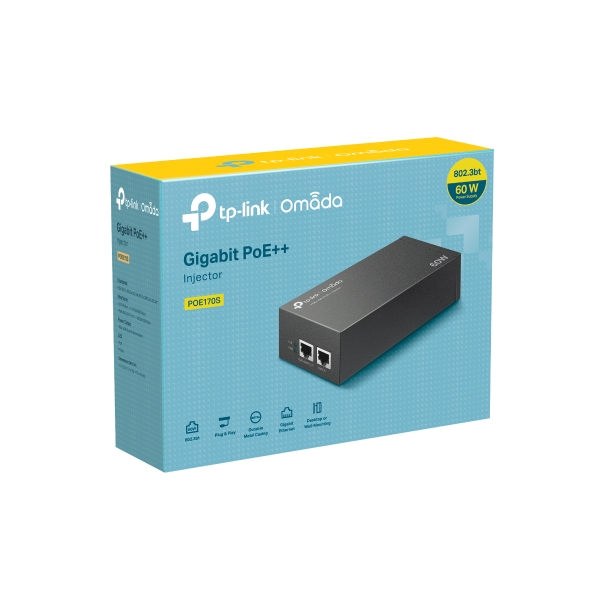

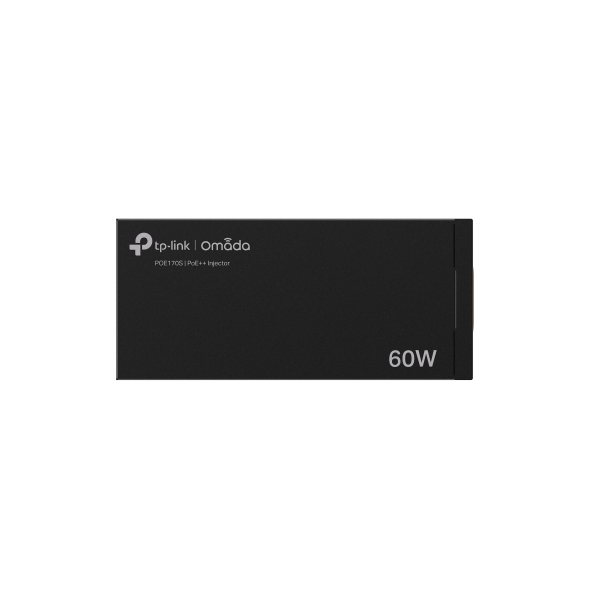

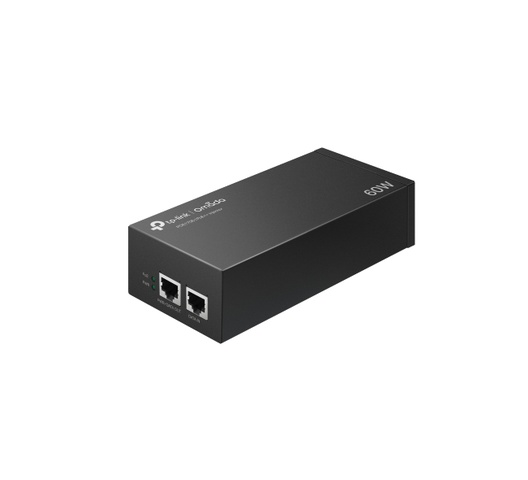

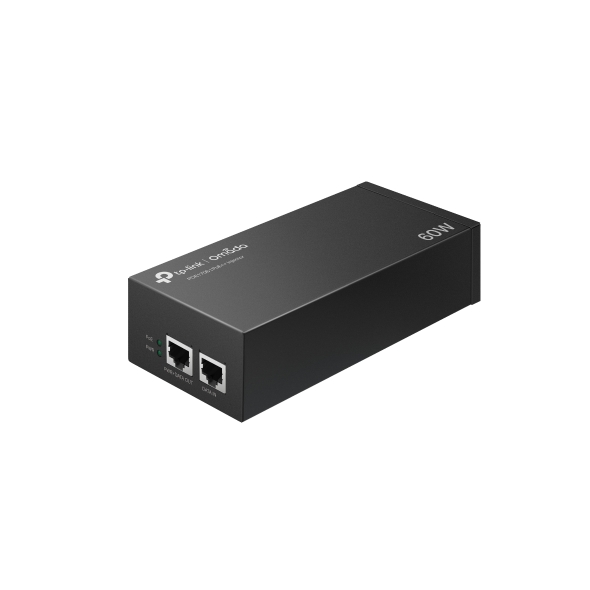

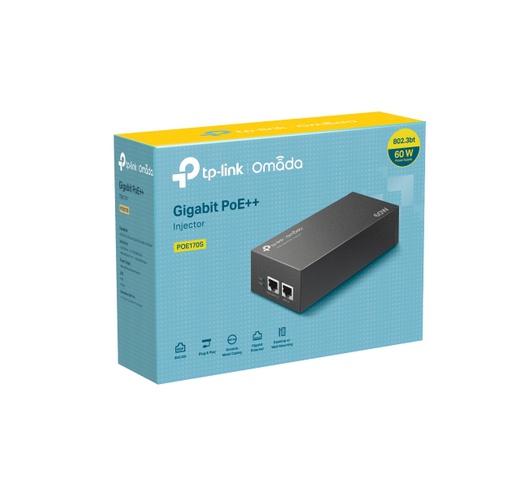

TP-Link TL-POE170S 60W PoE++ Injector

The TL-POE170S PoE++ Injector adds electrical power to a Gigabit Ethernet connection for compatible network devices. It supports access points, Internet Protocol cameras, and other powered devices that use recognised Power over Ethernet standards. Therefore, installers can place equipment where a separate electrical socket is unavailable or difficult to access.

Product Overview

The injector provides one 10/100/1000 Mbps data input port and one 10/100/1000 Mbps power-and-data output port. It combines data and electrical power through one Ethernet cable. As a result, installations require less separate power cabling near the connected device.

The TL-POE170S PoE++ Injector supports IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt Type 3. Its automatic sensing function identifies the connected powered device and supplies the required power, up to 60W. However, installers should confirm the device’s PoE standard and power requirements before connection.

Key Features

• Supplies up to 60W for compatible IEEE 802.3af, 802.3at, and 802.3bt powered devices.

• Includes two Gigabit Ethernet ports for maintaining compatible high-speed network connections.

• Combines data and power on one Ethernet cable, reducing the need for a nearby electrical socket.

• Detects the connected device’s power needs automatically for suitable power delivery.

• Requires no software configuration, allowing straightforward plug-and-play installation.

• Supports desktop and wall-mounted placement for flexible deployment.

• Uses an integrated power supply, reducing the need for a separate external power adapter.

• Features a metal enclosure for durability in professional network installations.

• Includes power and PoE indicators for checking operating status.

Technical Specifications

• Brand: TP-Link

• Model: TL-POE170S

• Product type: PoE++ injector

• PoE standards: IEEE 802.3af, IEEE 802.3at, and IEEE 802.3bt Type 3

• Network standards: IEEE 802.3i, IEEE 802.3u, and IEEE 802.3ab

• Data input: One 10/100/1000 Mbps RJ45 port

• Power and data output: One 10/100/1000 Mbps RJ45 port

• Maximum output: 60W

• Power input: 100–240V alternating current, 50/60 Hz, 1.6A

• Supported cable distance: Up to 100 metres with suitable Ethernet cabling

• Installation: Desktop or wall mounting

• Enclosure: Metal

• Dimensions: 155 × 70 × 42 mm

• Operating temperature: 0°C to 45°C

• Certifications: FCC, CE, and RoHS

• Package contents: Injector, power cord, RJ45 cable, and installation guide

Common Applications

The TL-POE170S PoE++ Injector suits offices, schools, hotels, warehouses, and other structured network environments. It can power compatible wireless access points, pan-tilt-zoom Internet Protocol cameras, and other standards-based PoE equipment through network cabling.

Why Choose This Product?

This injector combines Gigabit data transmission, automatic power detection, and up to 60W output in a durable enclosure. Moreover, its integrated power supply simplifies deployment. The TL-POE170S PoE++ Injector provides a practical way to add high-power PoE to a non-PoE network connection.

Frequently Asked Questions

Does the injector provide 60W to every device?

It supplies the power requested by a compatible powered device, up to a maximum of 60W.

Can it connect to a non-PoE network switch?

Its data input can connect to a compatible non-PoE switch, while the output adds power to the Ethernet connection.

Does it require network configuration?

The plug-and-play design operates without software configuration.
