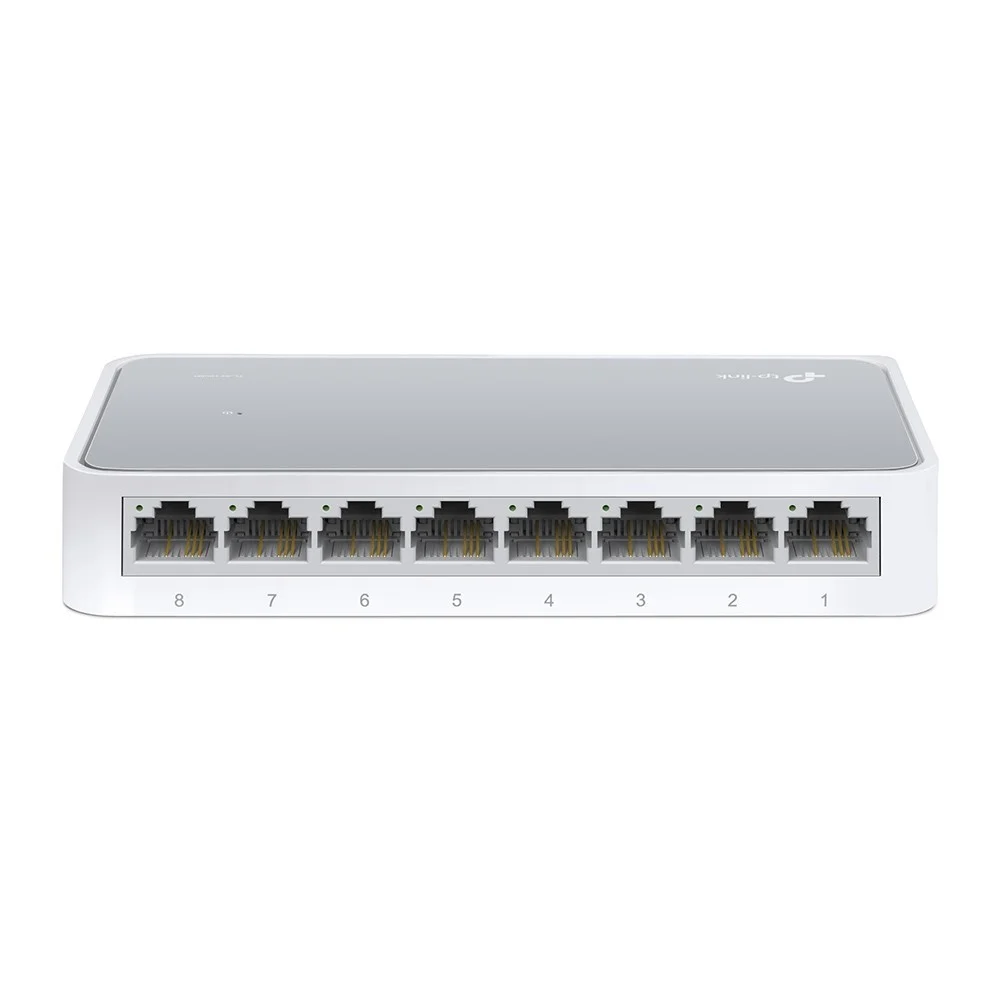

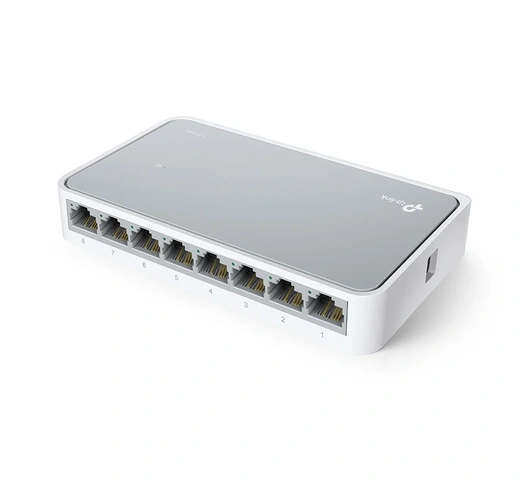

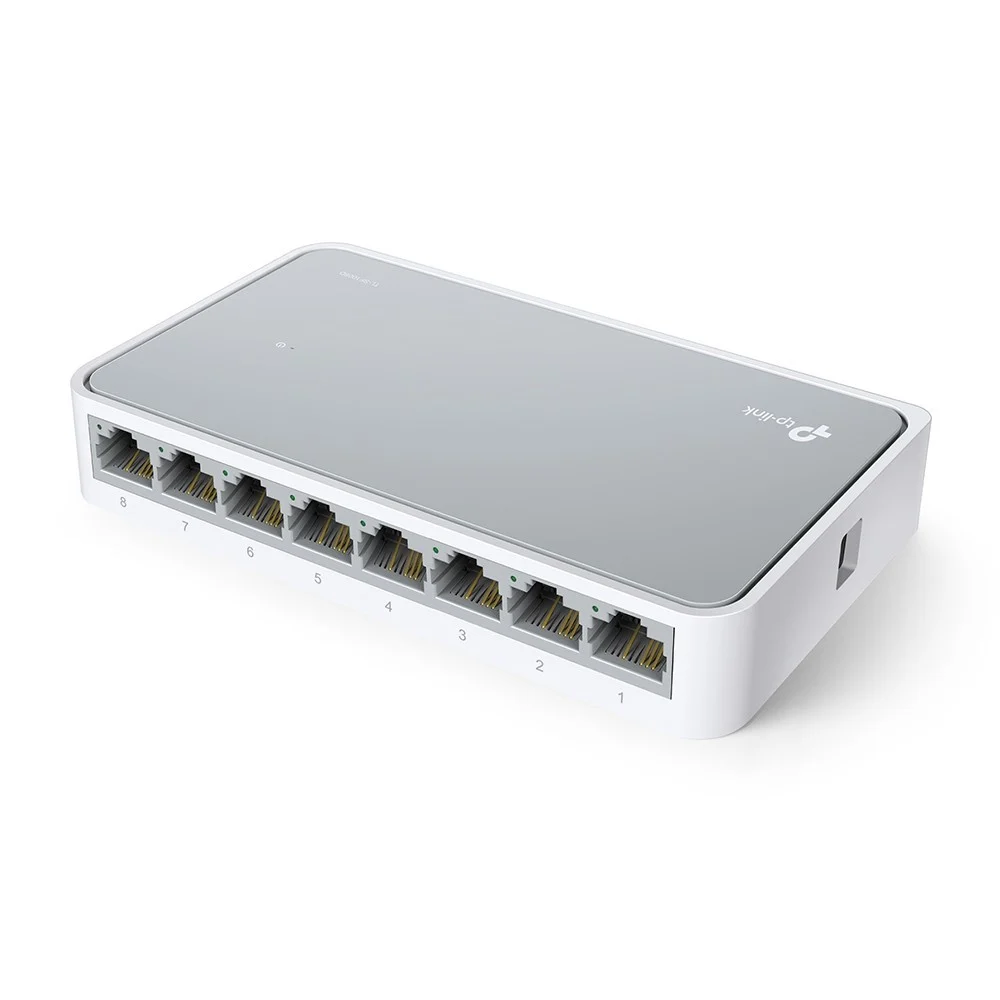

TP-Link TL-SF1008D 8-Port 10/100 Mbps Desktop Switch

The TL-SF1008D 8-Port Desktop Switch provides a simple way to expand a wired network. It is designed for homes, small offices, shops, and workgroups that need additional Ethernet connections. Eight Fast Ethernet ports allow users to connect computers, printers, Internet Protocol phones, televisions, and other compatible devices without configuring network settings.

Product Overview

Each port supports 10/100 Mbps auto-negotiation. Therefore, the switch detects the supported connection speed of each device automatically. Auto Medium-Dependent Interface and Medium-Dependent Interface Crossover also removes the need for crossover Ethernet cables.

The TL-SF1008D 8-Port Desktop Switch uses a non-blocking switching design and store-and-forward transmission. It filters and forwards network traffic efficiently. Moreover, Institute of Electrical and Electronics Engineers 802.3x flow control helps reduce data loss during busy network activity.

Key Features

• Provides eight 10/100 Mbps RJ45 ports for expanding a small wired network.

• Supports auto-negotiation, allowing every port to select a suitable connection speed.

• Includes Auto MDI/MDIX, removing the need to identify straight-through or crossover cables.

• Offers a 1.6 Gbps switching capacity for handling traffic across all eight ports.

• Supports 2K jumbo frames, which improve efficiency when transferring compatible large data frames.

• Uses energy-efficient technology to adjust power consumption according to network activity.

• Features a fanless design, providing quiet operation in offices and home environments.

• Requires no software configuration, making installation quick and straightforward.

Technical Specifications

• Brand: TP-Link

• Model: TL-SF1008D

• Product type: Unmanaged desktop switch

• Interfaces: Eight 10/100 Mbps RJ45 ports

• Port features: Auto-negotiation and Auto MDI/MDIX

• Network standards: IEEE 802.3, IEEE 802.3u, and IEEE 802.3x

• Switching capacity: 1.6 Gbps

• Data rate: Up to 200 Mbps per port in full-duplex mode

• Jumbo frame: 2K

• Transmission method: Store and forward

• Cooling: Fanless

• Operating temperature: 0°C to 40°C

• Operating humidity: 10% to 90% non-condensing

• Certifications: FCC and RoHS

• Package contents: Desktop switch, power adapter, and user guide

Common Applications

The TL-SF1008D 8-Port Desktop Switch suits home networks, small offices, retail counters, and workgroups. Users can connect compatible computers, printers, televisions, recorders, and other Ethernet devices. However, its Fast Ethernet ports are intended for networks that require speeds of up to 100 Mbps.

Why Choose This Product?

This unmanaged switch offers plug-and-play installation, quiet operation, and automatic port adjustment. In addition, its compact plastic enclosure fits easily on a desk. The TL-SF1008D 8-Port Desktop Switch is a practical option for adding Ethernet ports without introducing complex network management.

Frequently Asked Questions

Does the TL-SF1008D support Gigabit Ethernet?

Its ports support 10 Mbps and 100 Mbps Ethernet connections. They do not provide 1000 Mbps Gigabit speeds.

Does this switch require configuration?

The unmanaged design works automatically after connecting power and Ethernet cables.

Can any port connect to a router?

Auto MDI/MDIX allows any of the eight ports to connect to a compatible router or network device.
