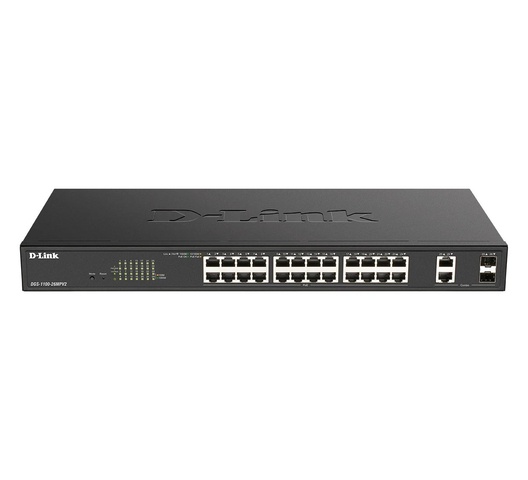

DGS-1100-26MPV2 24-Port PoE Smart Switch

The DGS-1100-26MPV2 24-Port PoE Smart Switch provides managed Gigabit connectivity and power for growing business networks. It includes 24 Power over Ethernet ports and two Gigabit combo uplinks. Therefore, it suits offices, schools, hotels, retail spaces, and network camera installations. A 370W power budget supports multiple compatible devices, while web-based management gives administrators control over traffic, security, and port settings.

Product Overview

The DGS-1100-26MPV2 features 24 Gigabit Ethernet ports with IEEE 802.3af and IEEE 802.3at support. As a result, compatible access points, Internet Protocol cameras, and phones can receive data and power through one cable.

Two Gigabit combo ports support either copper or Small Form-factor Pluggable connections. However, each combo pair operates as one interface at a time. The switch also provides 52 Gbps switching capacity and a maximum forwarding rate of 38.69 million packets per second.

Key Features

• Provides 24 Gigabit PoE ports, allowing compatible equipment to receive power and network data through Ethernet cabling.

• Offers a 370W PoE budget, supporting multiple powered devices within the total available capacity.

• Includes two Gigabit copper and SFP combo ports, providing flexible uplink options for compatible network infrastructure.

• Uses a web-based interface, making Layer 2 settings accessible without complex command-based configuration.

• Supports Virtual Local Area Networks, allowing administrators to separate traffic for improved organisation and control.

• Includes Internet Group Management Protocol snooping, which helps manage multicast traffic more efficiently.

• Supports Link Aggregation, allowing compatible ports to combine bandwidth or provide connection resilience.

• Provides Spanning Tree Protocol and Rapid Spanning Tree Protocol to prevent loops within networks containing redundant links.

• Includes storm control for broadcast, multicast, and unicast traffic, helping protect network performance during traffic floods.

• Supports Secure Sockets Layer access, helping protect browser-based management sessions.

Technical Specifications

• Brand: D-Link

• Model: DGS-1100-26MPV2

• Product type: Layer 2 smart managed PoE switch

• PoE ports: 24 × 10/100/1000 Mbps

• Combo ports: 2 × Gigabit Ethernet or SFP

• PoE standards: IEEE 802.3af and IEEE 802.3at

• Total PoE budget: 370W

• Switching capacity: 52 Gbps

• Maximum forwarding rate: 38.69 Mpps

• Management: Web-based interface

• Cooling: Smart fan

• Maximum power consumption: 454.1W with PoE active

• Dimensions: 440 × 208 × 44 mm

• Weight: 2.8 kg

• Operating temperature: -5°C to 50°C

• Operating humidity: 0% to 95%, non-condensing

Common Applications

The DGS-1100-26MPV2 24-Port PoE Smart Switch suits offices, schools, hotels, retail premises, and medium-sized surveillance networks. Its high power budget supports compatible cameras, access points, and phones. Meanwhile, the combo uplinks provide copper or fibre connectivity to other supported network equipment.

Why Choose This Product?

This switch combines a substantial PoE budget with practical Layer 2 controls. Consequently, administrators can power devices, separate traffic, manage multicast streams, and protect the network against loops. The DGS-1100-26MPV2 24-Port PoE Smart Switch also offers flexible combo uplinks and browser-based setup. These features support organised deployment and future network expansion.

Frequently Asked Questions

Can all 24 copper ports supply PoE?

All 24 Gigabit copper ports support IEEE 802.3af and IEEE 802.3at. However, their combined power demand must remain within the 370W budget.

How do the two combo ports operate?

Each combo interface provides copper and SFP connection options. Only one connection type within each combo pair can operate at a time.

Can the switch help control multicast camera traffic?

Internet Group Management Protocol snooping can manage multicast streams and limit unnecessary traffic across unrelated ports.

Does the DGS-1100-26MPV2 require command-line configuration?

The DGS-1100-26MPV2 24-Port PoE Smart Switch provides a web interface for configuring supported Layer 2, security, and traffic-management features.
