Ubiquiti UniFi UCG-Max Cloud Gateway for Connected Business Networks

The Ubiquiti UniFi UCG-Max Cloud Gateway combines routing, security and UniFi management for small businesses and advanced homes in Kenya. Also known as the Cloud Gateway Max, the compact unit provides five 2.5 Gigabit Ethernet ports for wired connections. In addition, the 512 GB configuration supplies local storage for UniFi Protect recordings. These functions suit users who need central network control, authorised remote access and management of supported UniFi equipment.

A Desktop Gateway with Integrated Management

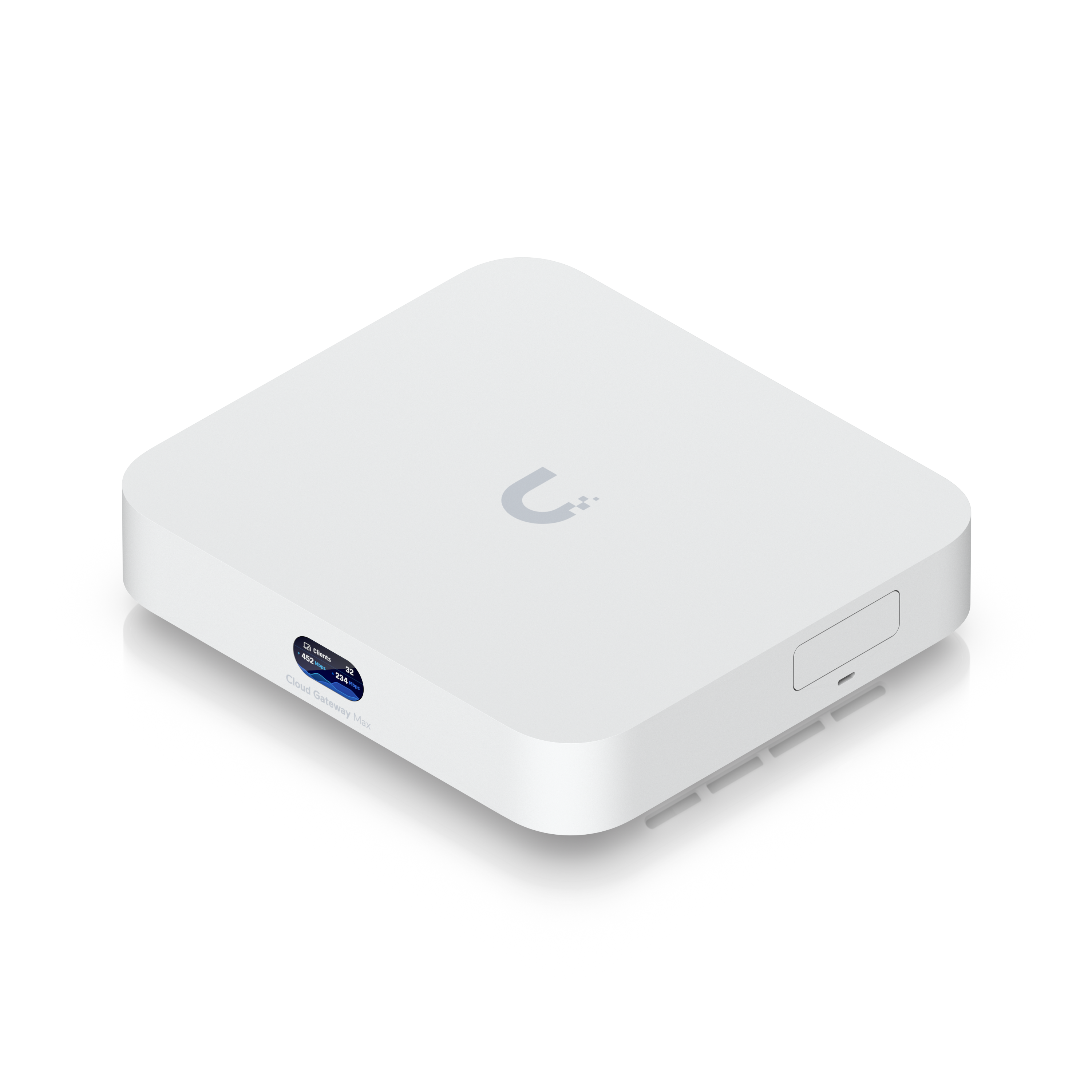

The Ubiquiti UniFi Cloud Gateway Max is a desktop network gateway that controls internet traffic and hosts UniFi applications for offices, shops and managed homes. The UCG-Max combines firewall rules, multi-gigabit Ethernet and remote access tools, while the 512 GB version adds local storage for compatible camera recordings.

Flexible Internet Connections and Security Policies

Multiple Wide Area Network (WAN) connections support failover and load balancing. Consequently, administrators can configure separate internet services around their continuity needs. Meanwhile, internet quality and outage reporting helps teams investigate service interruptions. Backup access depends on a working secondary service and correct settings.

A stateful firewall checks traffic against connection information, while application-aware rules provide more targeted control. In addition, Virtual Local Area Networks (VLANs) separate groups of devices. Virtual Private Network (VPN) support also provides options for authorised remote access and links between sites, helping teams control access to shared resources.

Features That Support Daily Network Operations

The gateway combines routing and application hosting with practical controls for connected sites.

• Five 2.5 Gigabit Ethernet ports: Connect suitable internet services and local equipment through multi-gigabit wired links.

• Threat detection and prevention: Inspect traffic for recognised threats, adding a protection layer alongside configured firewall rules.

• Multi-WAN support: Enables failover and load balancing, helping administrators manage more than one internet connection.

• Local UniFi applications: Hosts Network, Protect, Access, Talk and Connect, bringing supported systems onto one platform.

• 512 GB recording storage: Holds UniFi Protect footage locally, allowing authorised users to review recordings from compatible cameras.

• VPN connectivity: Supports WireGuard and OpenVPN, providing options for controlled connections beyond the local network.

Hardware, Storage and Power Specifications

The 512 GB configuration combines the following hardware with local UniFi application management.

• Brand: Ubiquiti.

• Product type: Compact desktop cloud gateway.

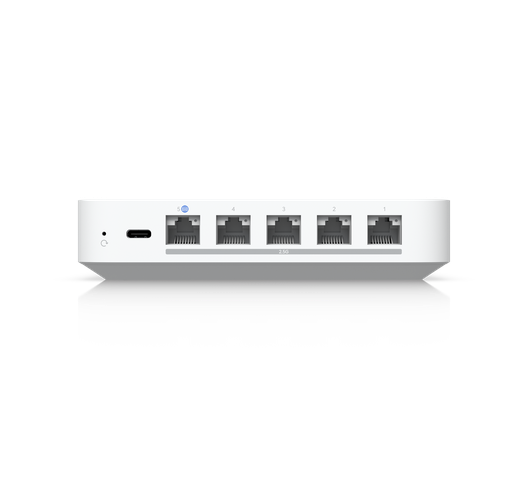

• Network ports: Five RJ45 ports supporting up to 2.5 Gigabit Ethernet.

• Default internet uplink: One 2.5 Gigabit Ethernet port.

• Processor: Quad-core ARM Cortex-A53 at 1.5 GHz.

• System memory: 3 GB.

• Storage: 512 GB Non-Volatile Memory Express solid-state drive (NVMe SSD).

• Intrusion Detection System and Intrusion Prevention System (IDS/IPS) throughput: 2.3 Gbps.

• Power input: USB Type-C, 5 V direct current, 5 A.

• Maximum power consumption: 16.1 W.

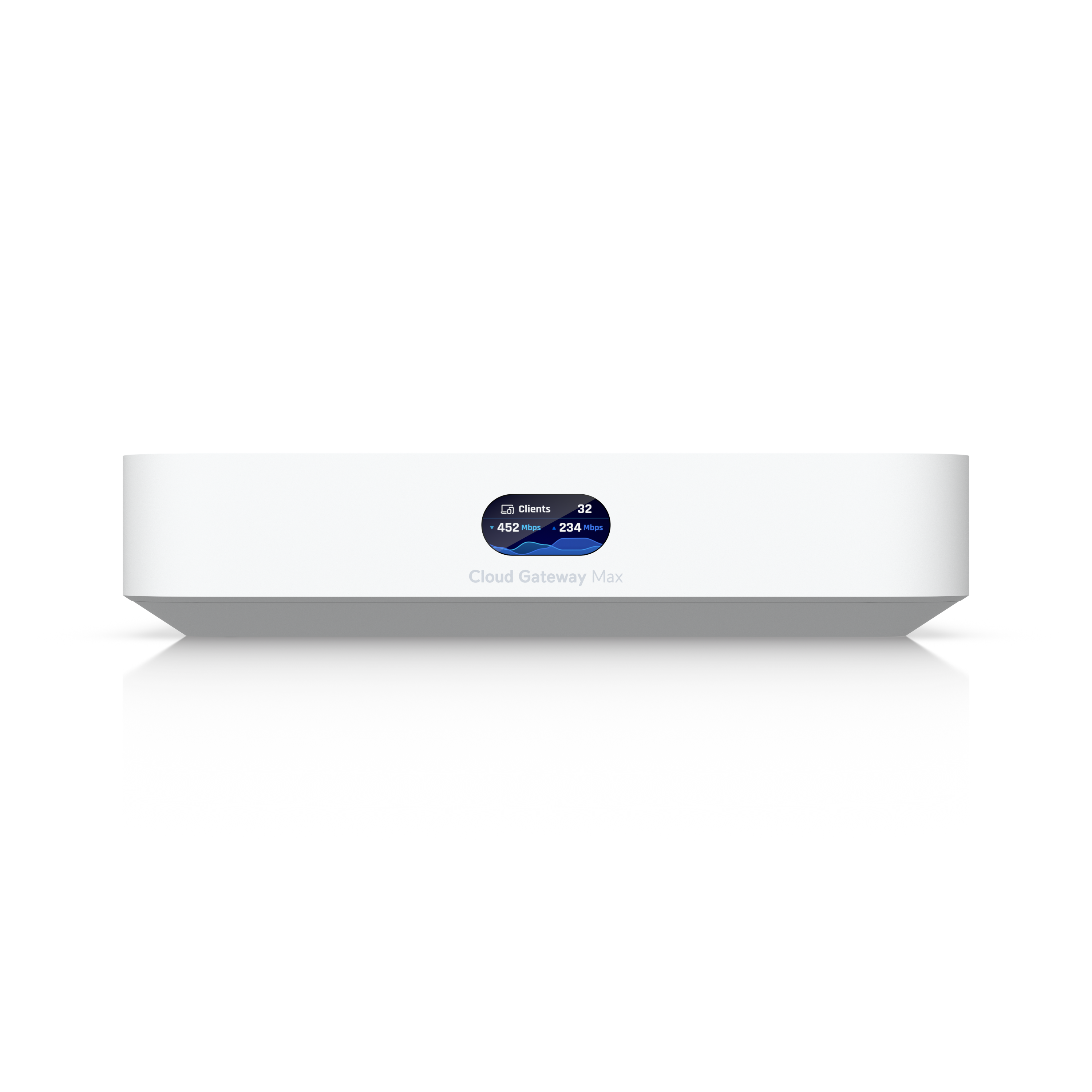

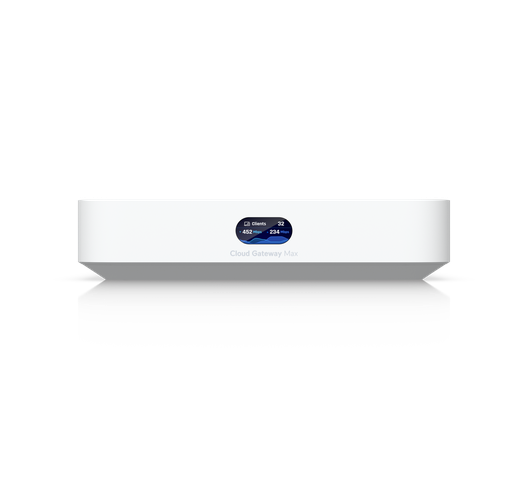

• Status display: 0.96 inches.

• Dimensions: 141.8 × 127.6 × 30 mm.

• Weight with storage: 519 g.

Deployment in Offices, Shops and Homes

Small offices, retail premises and advanced home networks suit this compact gateway. Additionally, compatible camera installations can use its local recording storage. However, recording retention depends on camera count, settings and activity. Therefore, assess the intended workload, storage needs and internet connections before deployment.

Technical Support and Warranty in Kenya

Technical support is available in Kenya for guidance on choosing, setting up and using the gateway. Before purchase, confirm the storage configuration and requirements of connected equipment. Also, review the applications you plan to run. Warranty terms for this product are confirmed before purchase.

Why Choose the Ubiquiti UniFi UCG-Max Cloud Gateway?

The Ubiquiti UniFi UCG-Max Cloud Gateway combines network control and application hosting within a compact desktop enclosure. Moreover, its wired connections and flexible routing support organised network growth. For sites using supported UniFi systems, central management reduces the need to administer key functions across separate platforms.

Frequently Asked Questions

Can the gateway manage a UniFi network without a separate controller?

UniFi Network runs locally on the gateway. Therefore, a separate controller is unnecessary for managing that local network.

What does the 512 GB drive store?

The drive provides local recording storage for UniFi Protect. However, retention time varies with camera settings and recording demand.

Can the gateway distribute traffic between internet services?

Multi-WAN load balancing supports traffic distribution across configured internet connections. Failover also provides another route when a service becomes unavailable.

Can customers in Kenya get help planning the setup?

Technical support in Kenya provides general guidance on selection, configuration and use. Confirm the planned internet services and application workload before purchase.

Order the Cloud Gateway Max from Almiria Kenya and get technical support for selection, setup and use.
